The global demand for sustainable surfacing in gyms, playgrounds, and industrial zones has turned recycled rubber into a high-margin commodity. The SL-120T Pro Precision Vulcanizing Series is engineered to bridge the gap between raw recycled materials and finished premium products. By integrating high-pressure hydraulics with advanced thermal control, this rubber tile vulcanizing press processes rubber granules and fibers sourced from a tire recycling line into durable, market-ready flooring solutions.

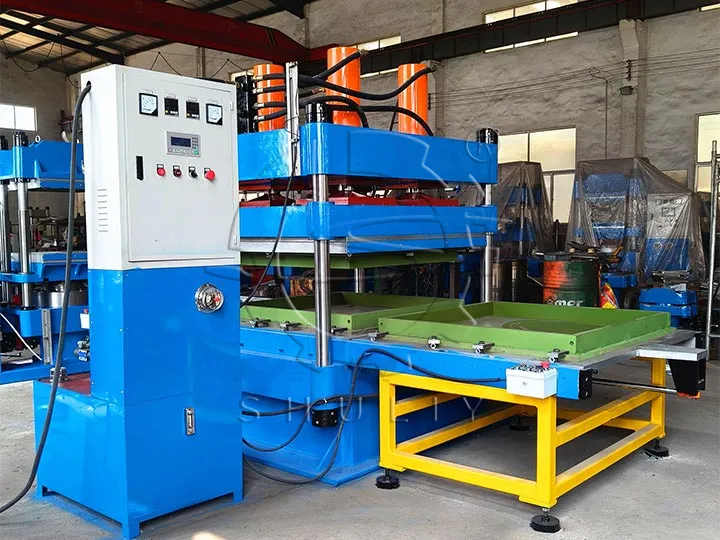

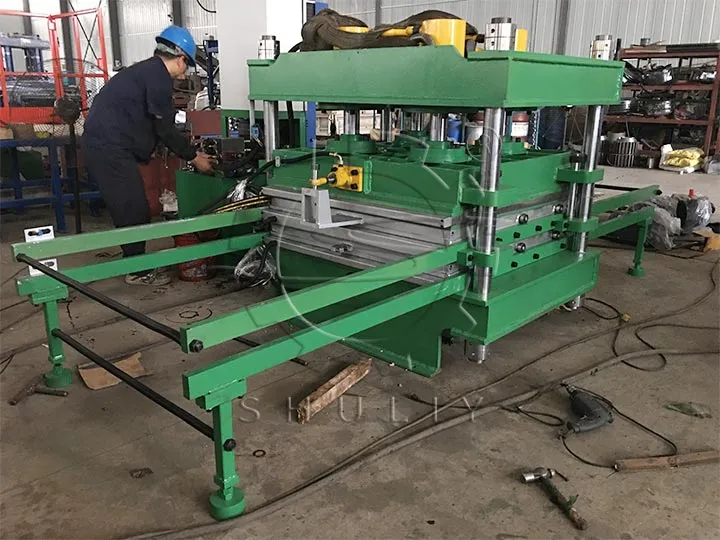

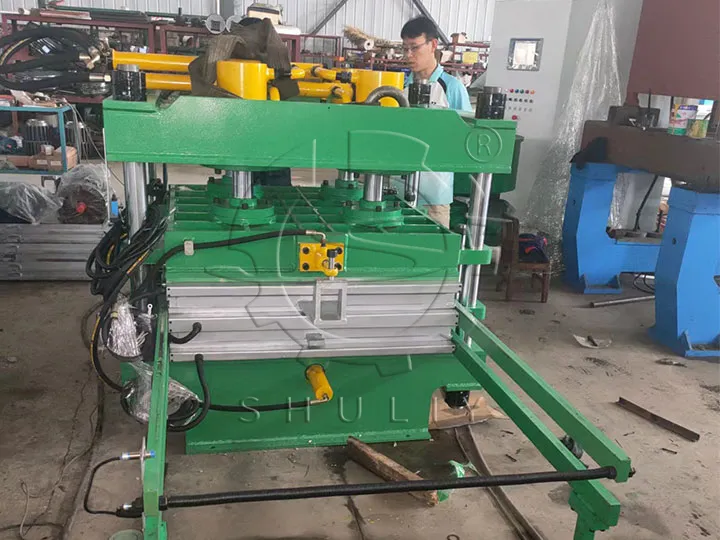

Advanced Engineering of the Rubber Floor Tiles Making Machine

Unlike entry-level equipment, the SL-120T Pro focuses on structural rigidity and pressure precision. The machine provides a nominal clamping force of 1.2MN (120 Tons), delivered via four Φ160mm piston cylinders. This high-pressure environment is critical for ensuring the density of the rubber tiles, preventing air pockets, and guaranteeing that the finished pavers meet international safety and wear-resistance standards.

The 1100 x 1100 x 60 mm hot plates are designed for uniform heat distribution. With a maximum heating temperature of 200°C, the system ensures that the adhesive (glue) and rubber granules bond perfectly throughout the entire surface area of the tile, whether you are producing 500x500mm or 1000x1000mm specifications.

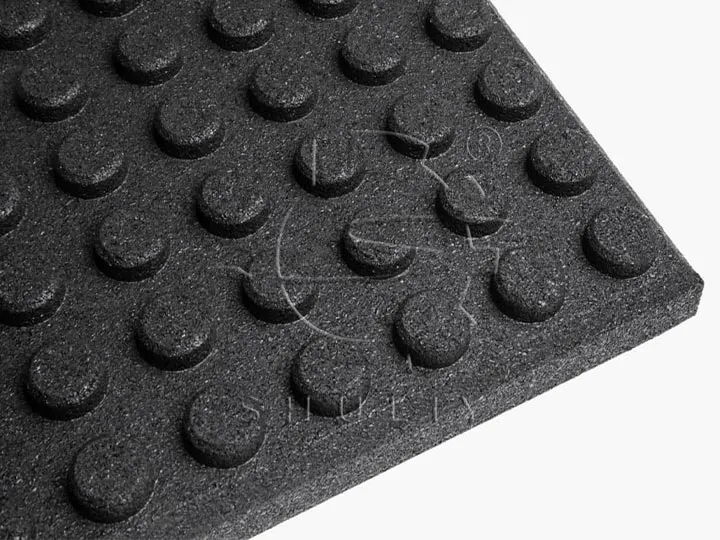

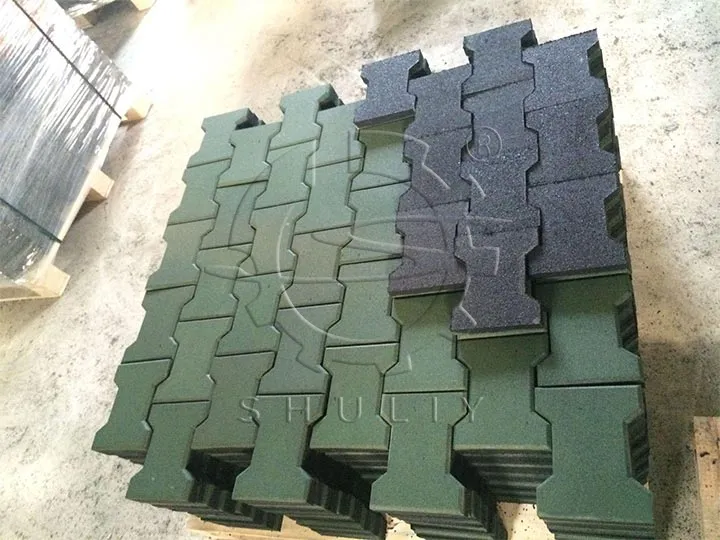

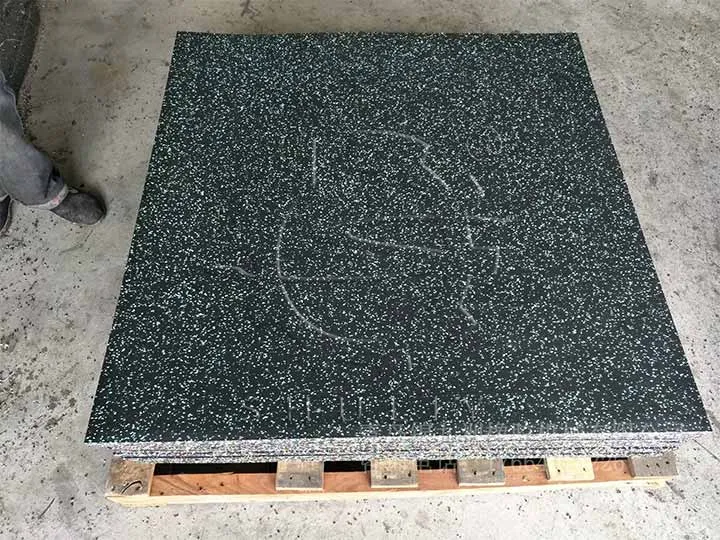

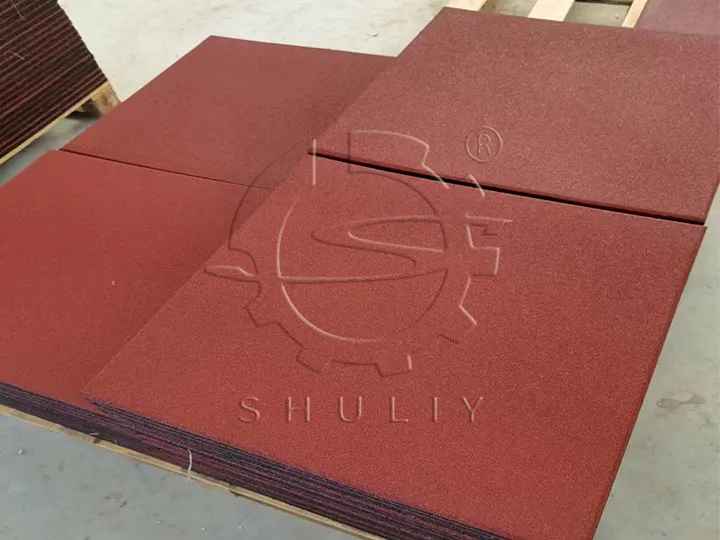

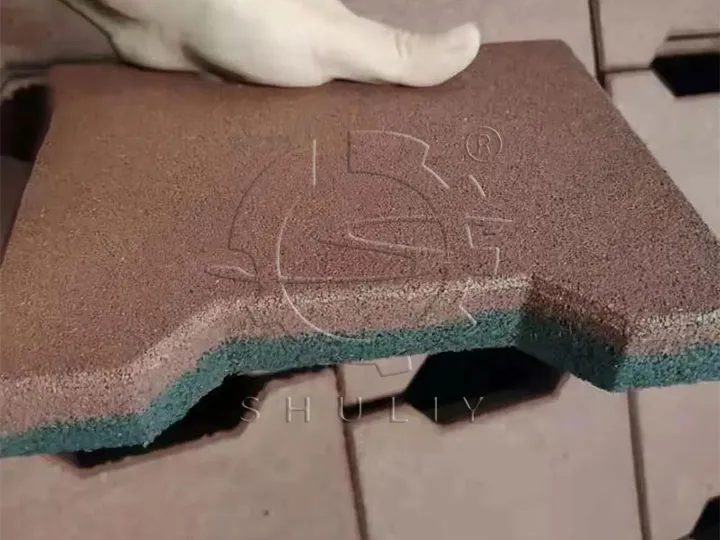

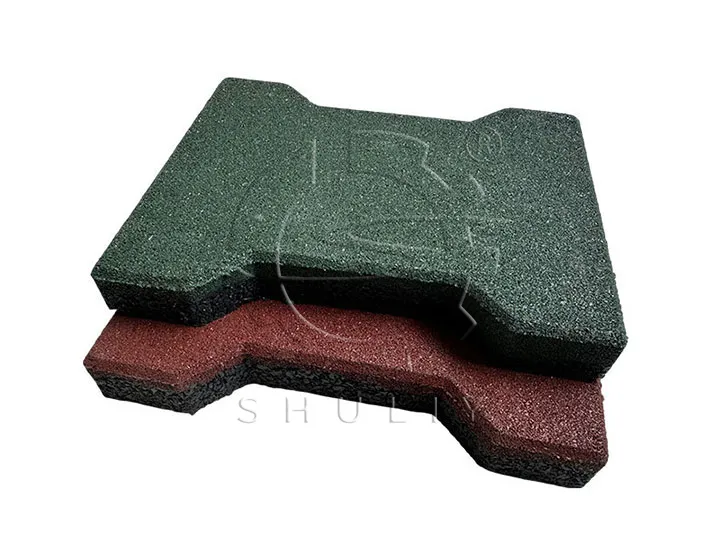

Final Products of Rubber Tile Making Machine

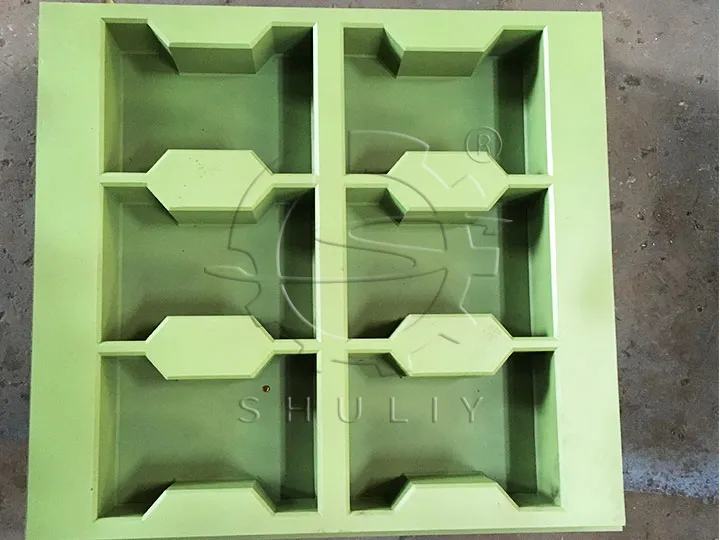

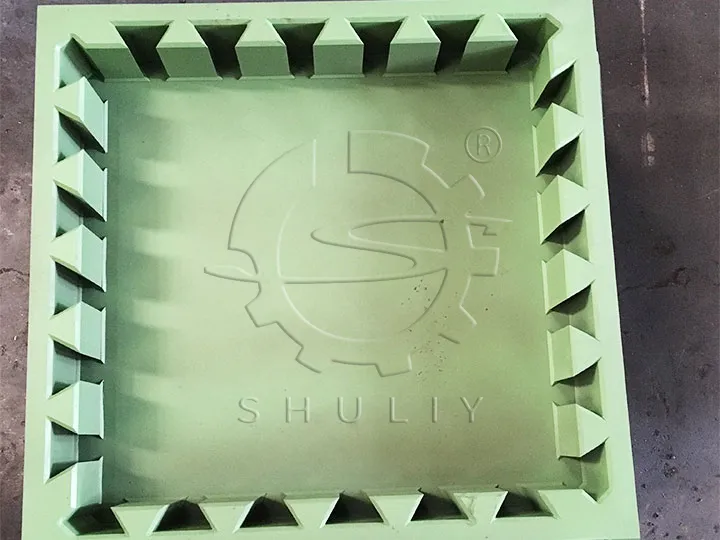

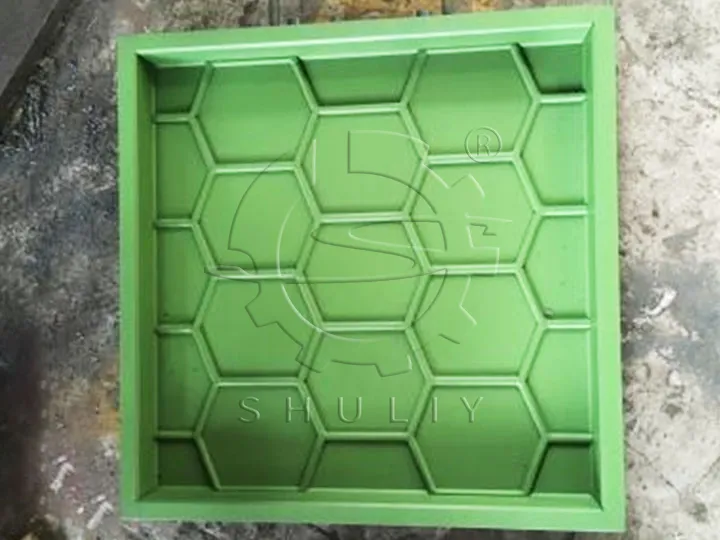

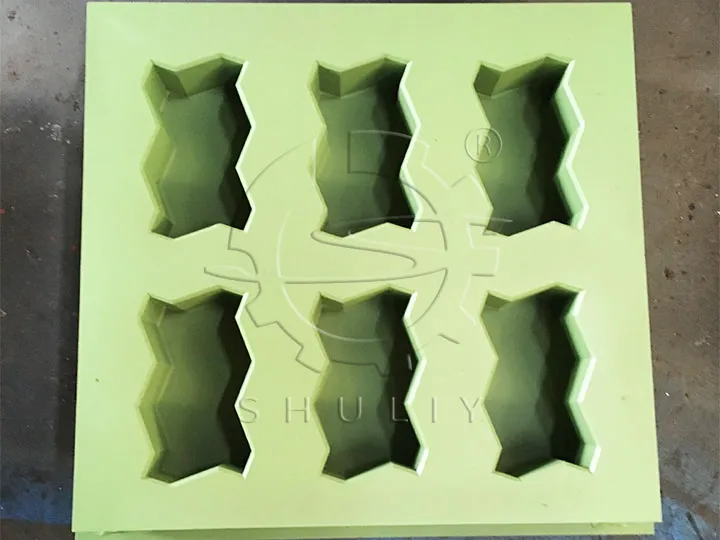

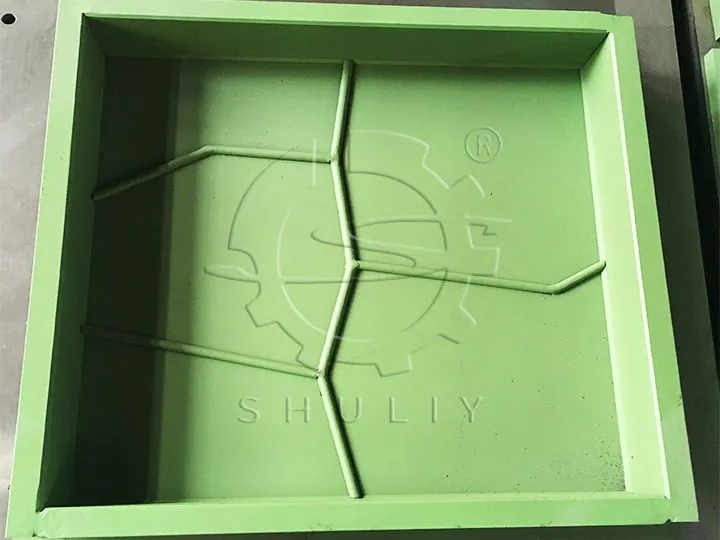

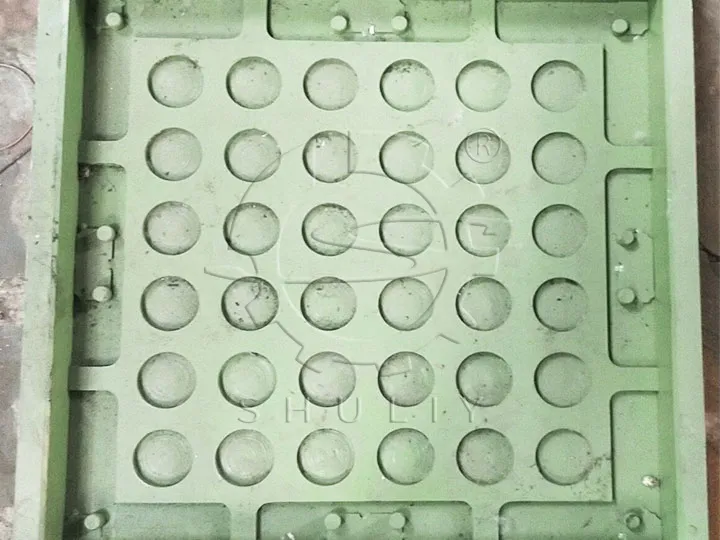

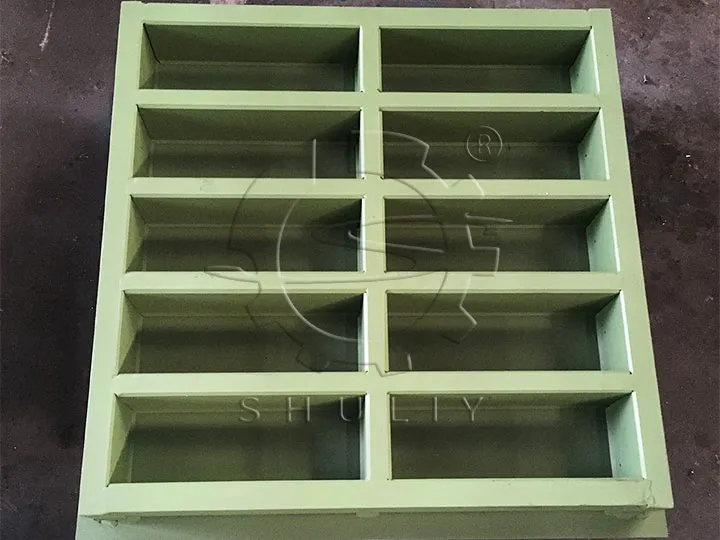

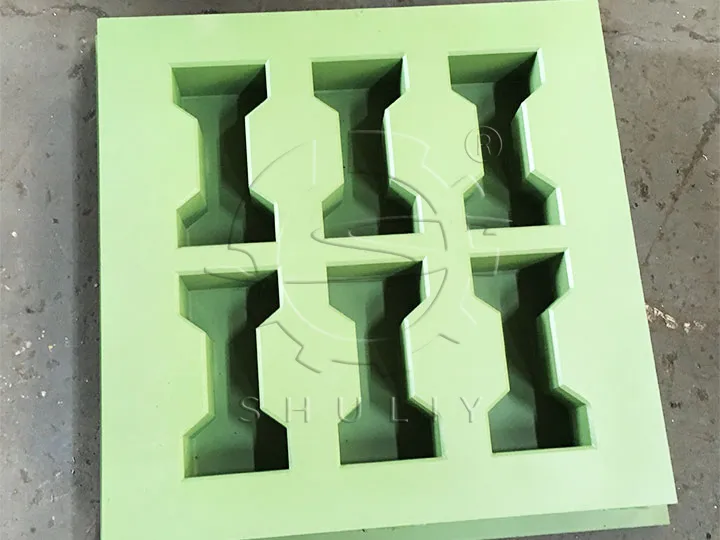

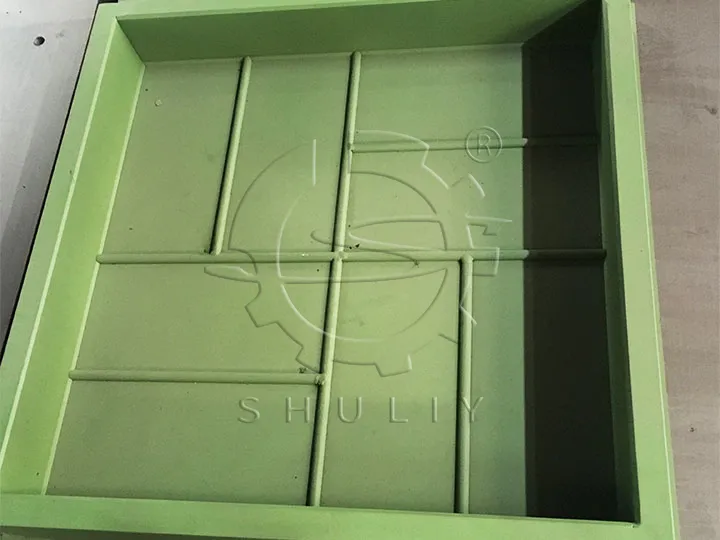

Clusive Teflon-Coated Mould Technology

A primary bottleneck in rubber tile production is the manual labor required for de-moulding. Our specialized moulds utilize a Teflon plating process, providing a distinct competitive edge:

• Non-Stick Operation: The Teflon coating eliminates the need for release agents before every cycle. This reduces consumable costs and prevents chemical buildup on the tile surface.
• Adjustable Thickness: Each mould set is equipped with adjusting tooling, allowing for the production of four specific thicknesses: 15, 20, 25, and 30mm.

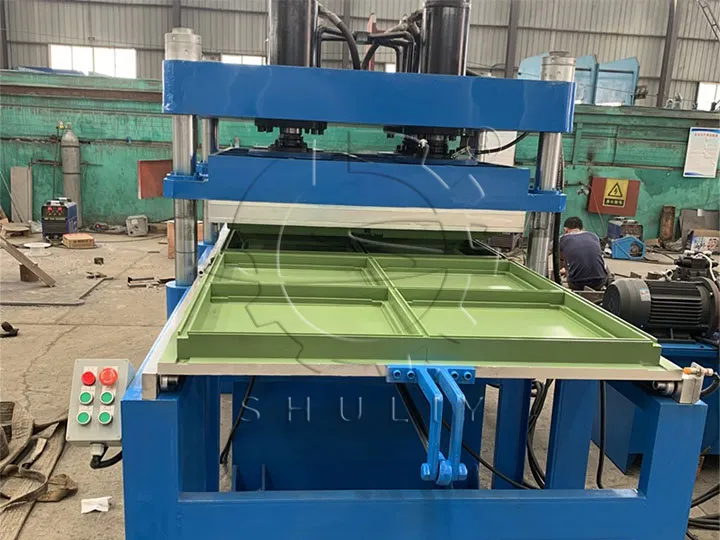

• Convenient Access: The sliding rail design reduces physical strain on operators, allowing the heavy moulds to be moved in and out of the heating layers with minimal resistance.

Optimized Workflowor the Rubber Floor Tiles Making Machine

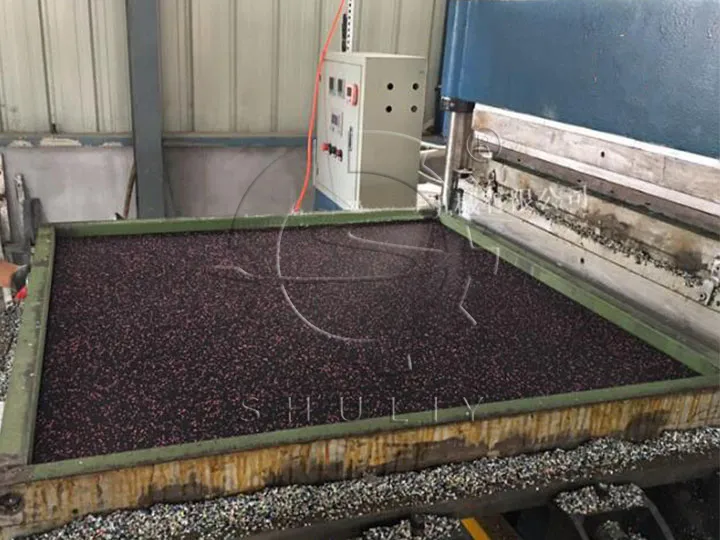

Efficiency in a production facility is measured by cycle time and purity. The SL-120T Pro operates on a synchronized cycle of heating, forming, and curing. To achieve the best results, the production follows a rigorous technical process:

• Material Preparation: Using a 250# Rubber Powder Mixer (4kw, 18r/min), granules are mixed with pigments and adhesives for 4-6 minutes.

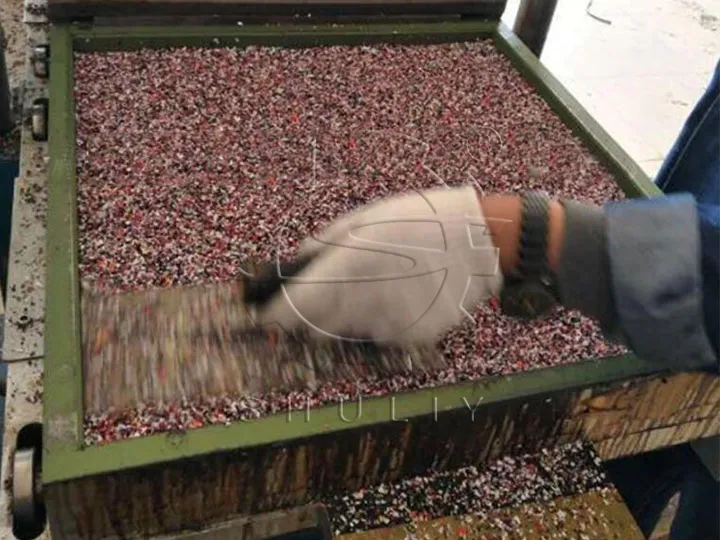

• Double-Layer Paving: Fine 0.6-1mm colored granules are paved for the top surface, followed by 1-4mm coarse granules (often recycled directly from a tire recycling line) for the base layer to optimize material costs.
• Precision Vulcanization: The mould is placed into the press where the PLC system manages the 3-8 minute vulcanization cycle at a working pressure of 20Mpa.

Technical Specifications: SL-120T Pro Series

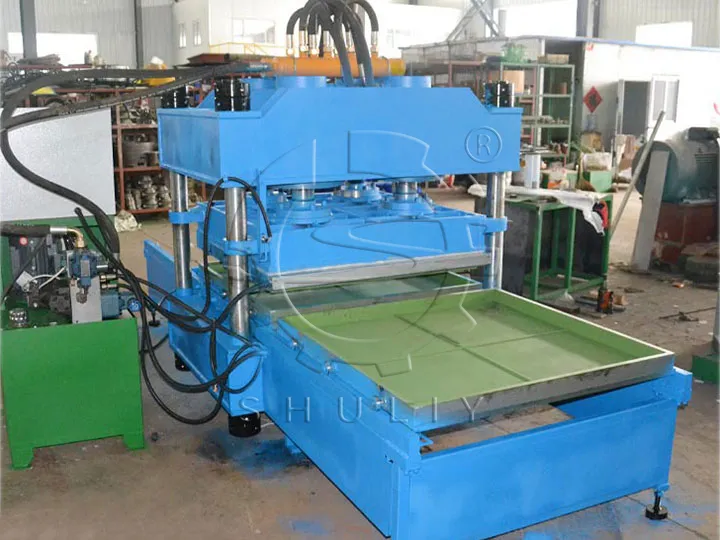

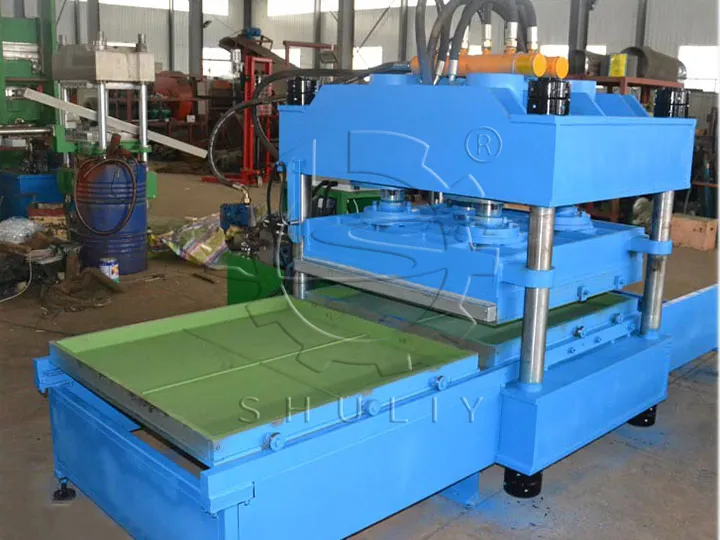

More Rubber Tile Vulcanizing Press Images
